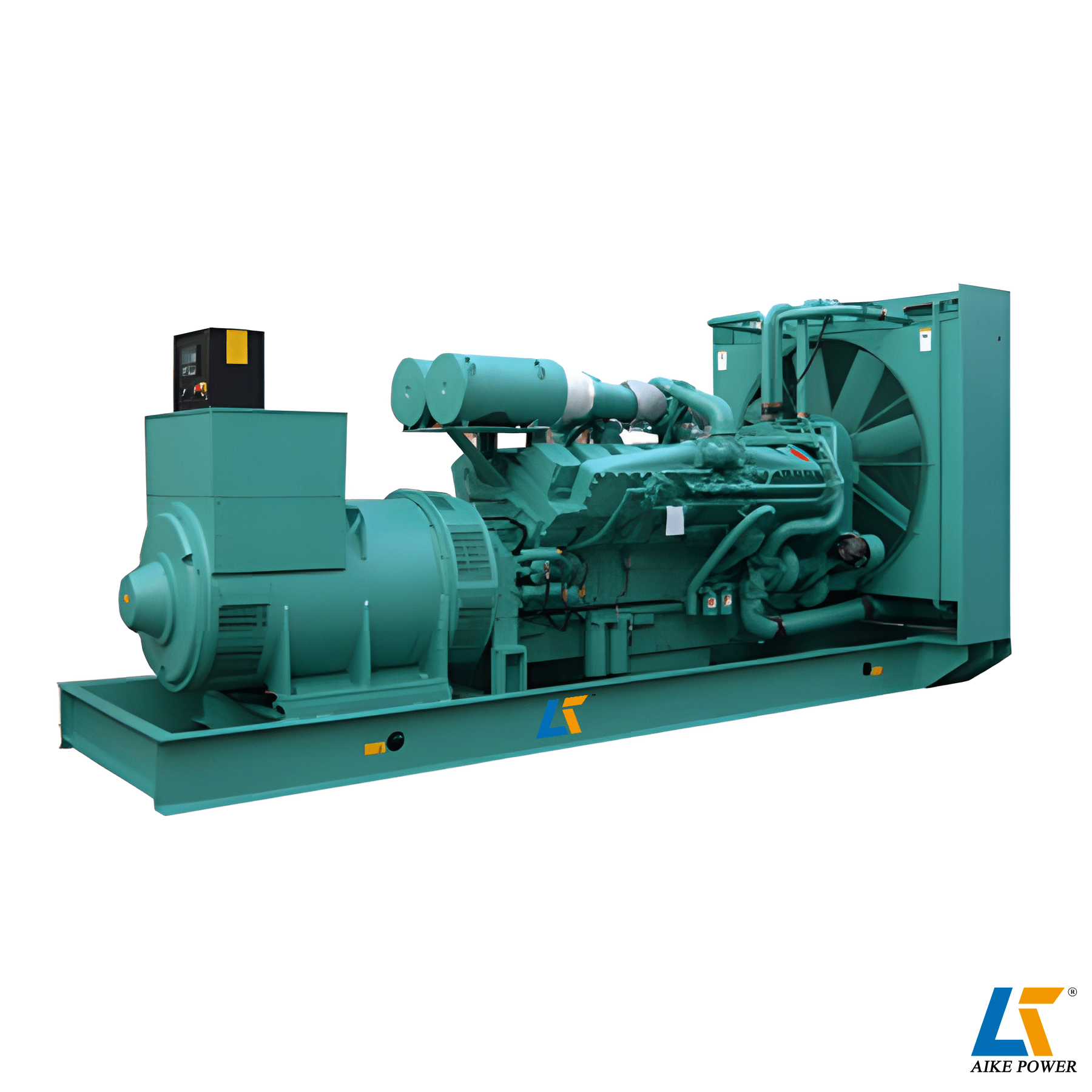

Product Description
Perkins Diesel Engine, Diesel Generator set 50HZ/1500RPM,380/220V,400/230V,415/240V can be adjustable, Open Type, weatherproof type or soundproof type, trailer type and so on.
Also have 60HZ/1800RPM,voltage is 220/127V,380/220V,440/254V can be option
ATS can be option
Controller brand: UK Deepsea, Czech ComAp, Denmark DEIF, Smartgen China
Generator Standard Compose:
- Perkins Engine, model 4012TAG2A.
- Meet the environmental temperature 40 ℃water tank radiator, Driving belt cooling fans, with fan safety shield
- 24 V charging generators
- Generator: Single bearing generator, IP23 Grading Protection, H Insulation degree
- Shock absorber
- Dry air filter, Fuel filter, Oil filter
- Power output circuit breaker
- Standard control panel
- 12 V battery and battery connection cables
- Battery Charger
- Exhaust pipe, Bellows, Flange, Muffler set
- 8 hours’ base tank
- Documents and Manuals
| Generator set | Genset Model | AP1650 |
| Rating Power （KW/KVA） | 1200/1500 | |
| Standby Power（KW/KVA） | 1320/1650 | |
| Rating Ammeter（A） | 2165 @ 400V | |
|
Diesel Engine |
Engine Model | 4012TAG2A |
| Prime Power（KW） | 1296 | |
| Standby Power（KW） | 1422 | |
| Bore X Stroke (mm) | 160X190 | |
| Number of Cylinder & Configuration | 12 V | |
| Displacement (l) | 45.8 | |
| Compression Ratio | 13.6:1 | |
| Aspiration | Turbocharged & After-cooled | |
| Max. intake depression（kPa） | 6 | |
| Combustion air Volume（m³/min） | 106 | |
| Max. Exhaust back Pressure(kPa) | 10 | |
| Exhaust Gas Flow（m³/min） | 285 | |
| Max. Exhaust Gas Temperature（℃） | 472 | |
| Cooling | Water cooled with Radiator | |
| Fan cooling air flow（m³/min） | 1410 | |
| Total Coolant capacity（l） | 263 | |
| Max. temperature of coolant（℃） | 96 | |
| Max. permissible oil temp.（℃） | 105 | |
| Total oil capacity（l） | 178 | |
| Rating Fuel Consumption（l/h） | 306 | |
| Governing Type | Electrics Governor | |
|
Alternator |
Rating Voltage（V） | 400/230 (adjustment) |
| Alternator Model | LSA50.2L8 | |
| Rating Capacity（KW/KVA） | 1240/1550 | |
| Eff.% | 95.6% | |
| Power Factor | 0.8 lagged | |
| Exciting type | Brushless PMG exciter, AVR | |
| Voltage regulation | ±0.5% | |
| No. of Phase | 3 phase 4 wire | |
| Enclosure Class | IP23 | |
| Class of Insulation | H | |
| Battery | Rating Capacity（AH） | 4X200AH 12V |
| Generator set dimension （LXWXH） | 5300X1900X2500 mm | |
| Weight (kg) | 10500 | |
| Daily Fuel Tank | 10 hours | |
| Container Soundproof Dimension (40HQ) | 12192X2438X2438mm | |
| Noise at 7m around the soundproof | ≤80dBA |
FAQ
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy, Or 100% irrevocable L/C at sight.
Q: What is your lead time?
A: About 15-25 days after receiving advance deposit or original L/C.
Q: What certificates do you have?
A: We have ISO And we can apply for specific certificates for different countries such as SONCAP for Nigeria, COI for Iran, SASO for Saudi Arabia, etc.
Q: What warranty do you provide?
A: One year or 1200hours’ running whichever occurs first, during the guarantee period, we will supply free of the easily damaged parts for the possible problems except for the incorrect operation. After expiration, we supply cost spare parts for Genset maintenance.
